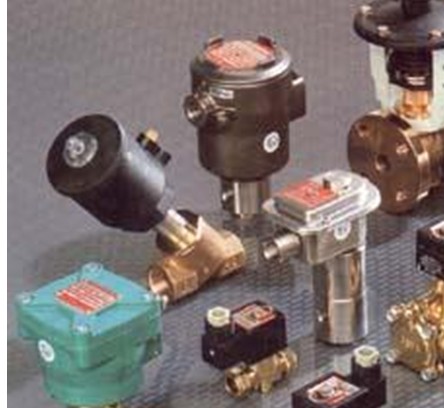

ASCO文件电磁阀，ASCO空气电磁阀

ASCO文件电磁阀，ASCO空气电磁阀

与流体接触的材料

（✴）确保与材料接触的流体的兼容性已验证

主体，端盖铝，黑色阳极氧化

端盖（弹簧复位）玻璃填充聚酰胺

接口板玻璃填充聚酰胺

阀芯内部零件Zamak，不锈钢，POM，铝

密封NBR + PUR

芯管和芯管不锈钢

遮光线圈铜

电气特性

线圈绝缘等级F

连接器铲形插头（电缆直径6-8 mm或Ø6-10 mm）

连接器规格DIN 43650，11 mm，工业标准B（类型01）

或ISO 4400 / EN 175301-803，形式A（类型02）

电气安全IEC 335

电气外壳防护等级IP65（EN 60529）

标准电压DC（=）：24V - 48V

（其他电压和60 Hz请求）AC（〜）：24V - 48V - 115V - 230V / 50 Hz

ASCO文件电磁阀，ASCO空气电磁阀

FEATURES

• The solenoid operated spool valves have threaded port connections and NAMUR

interface

• The same spool valve can be adapted for 3/2 NC or 5/2 functions for controlling

double-acting and single-acting actuators

• All the exhaust ports of this spool valve are connectable, providing better environmental

protection, particularly recommended for sensitive areas, such as clean rooms, and

applications in the pharmaceutical and food processing sectors

• The valves offer environmental protection against the ingress of liquids, dusts or

other foreign matter (environmentally-protected construction)

• The monostable spool valves have TÜV certifi ed IEC 61508 Functional Safety data

and can be used up to SIL 4/AK 7

• ASCO/JOUCOMATIC solenoid valves satisfy all relevant EC Directives
