吸盘直径 5 - 52 mm，丁腈橡胶或硅橡胶材质

连接螺纹 M5, G1/8, G1/4（均有内螺纹和外螺纹）

特别适用于表面极其不平整的工件或需要补偿很大工件高度的搬运

- handling of flat or uneven surface of the workpiece, such as car shell, tube, carton and so on

- handling fragile fragile parts, such as electronic components, injection molded parts and so on

- Handling of welding parts

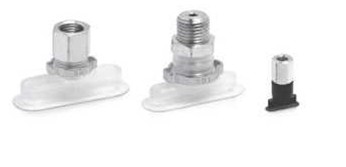

VTCN series of corrugated sucker (2.5 pleats) for the pleats

Wrinkled design, composed of threaded joints and rubber parts,

The rubber parts are round. The threaded connector can be inserted directly

The rubber parts are connected together and the threaded fittings and rubber parts can be ordered separately.

application:

类型 由橡胶件和螺纹接头组成，高耐磨性

结构形式 螺纹接头和橡胶件不预先装配

维护保养 可更换橡胶件

工作温度 丁腈橡胶材质：-30 ÷ 120°C（短时间，< 30s）；-10 ÷ 70°C（长时间）

» 吸盘底部的特殊结构，减少了搬运薄壁零件发生一直变形的可能

» 吸盘上部带皱褶，刚性好。在高速运动时，可承受较大的横向负载

- Silicone rubber sucker can be used in high temperature environment

Comprehensive parameters

»Wide range of diameter, rubber parts for the nitrile rubber and silicone rubber two materials (optional)

»The sealing lip is soft and tapering, and it has a strong adaptability to the surface and the uneven workpiece

»Good contact with the workpiece when the buffer performance, strong suction

» 可很好地补偿工件高度上的差异

» 2.5 褶的较优化外形

硅橡胶材质：-50 ÷ 220°C（短时间，< 30s）；-30 ÷ 180°C（长时间）
