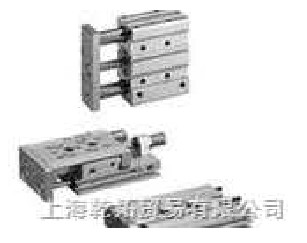

aventics双活塞气缸0820038152

aventics双活塞气缸0820038152

for piston diameter? 6: magnetic sensor necessary fastening parts

The oil content of the compressed air must remain constant throughout its life.

Retract the movement of the piston force [N] 19 63 189 296 475

Extreme movement of the piston force [N] 35 98 253 395 618

Maximum speed [m / s] 0,5 0,5 0,5 0,5 0,5

Has entered the maximum lift setting [mm] -5 -5 -5 -5 -5

Maximum Buffer Energy [J] 0,003 0,03 0,11 0,17 0,23

Weight 10 mm Stroke [kg] 0,06 0,125 0,26 0,4 0,58

Use only oil approved by AVENTICS, see the section "Technical Information".

The sensor mounting device is only used for the installation of the piston

Interface M5 M5 M5 M5 M5

Working pressure range [bar] 2 - 7 2 - 7 1,5 - 7 1,5 - 7 1,5 - 7

Ambient temperature range + 0 ° C / + 60 ° C

Media compressed air

Particle size max. 5 μm

Oil content in compressed air 0 mg / m3 - 1 mg / m3

Determine the pressure of the piston thrust 6,3 bar

Shell aluminum, anodized

Oriented bushing aluminum, anodized

The pressure dew point must be at least 15 ° C

below the ambient and medium temperature and the maximum permissible temperature is 3 ° C.
