QSL-1/8-8费斯托螺纹管接头主要特性

QSL-1/8-8费斯托螺纹管接头主要特性

Operating and environmental conditions

Operating pressure [bar] –0.95 … 50

Operating medium Compressed air to ISO 8573-1:2010 [–:–:–]

Gases on request

When using R threaded studs, we

recommend sealing using thread

sealing tape GWB-0,1

(part no. 9076).

Liquids on request

Ambient temperature [°C] –20 … +150

Corrosion resistance class CRC1) 1

1) Corrosion resistance class CRC 1 to Festo standard FN 940070

Low corrosion stress. For dry indoor applications or transport and storage protection.

Also applies to parts behind covers, in the non-visible interior area,

and parts which are covered in the application (e.g. drivetrunnions).

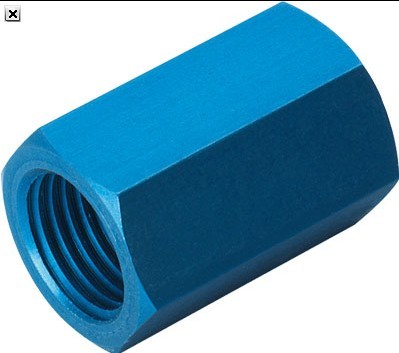

8030290 NPFC-S-2M5-F

8030291 NPFC-S-2G18-F

8030292 NPFC-S-2G14-F

8030267 NPFC-D-2M5-M

8030268 NPFC-D-M7-G18-M

8030269 NPFC-D-2G18-M

8030270 NPFC-D-G18-G14-M

8030271 NPFC-D-G18-G38-M

8030272 NPFC-D-2G14-M

8030273 NPFC-D-G14-G38-M

8030274 NPFC-D-G14-G12-M

8030275 NPFC-D-2G38-M

8030276 NPFC-D-G38-G12-M

8030277 NPFC-D-2G12-M

8030293 NPFC-S-2G38-F

8030298 NPFC-E1-2G18-FM

8030299 NPFC-E1-2G14-FM

8030300 NPFC-E1-2G38-FM

8030301 NPFC-E1-2G12-FM

8030302 NPFC-E2-2G18-FM

8030303 NPFC-E2-2G14-FM

8030304 NPFC-E3-2G18-FM

8030305 NPFC-E3-2G14-FM

8030306 NPFC-E4-2G18-FM

8030294 NPFC-S-2G12-F

8030295 NPFC-S-2G34-F
