Body 316 Stainless Steel

Seals and Disc FKM

Core and Plugnut 430F Stainless Steel

EF8320501

EF8320511

EF8320502

EF8320512

EF8317501

EF8317511

EF8317502

EF8317512

EF8321511

EF8321512

EF8320505

EF8320515

Core Spring 302 Stainless Steel

Rider Rings PTFE

Disc-Holder and Core Guide CA

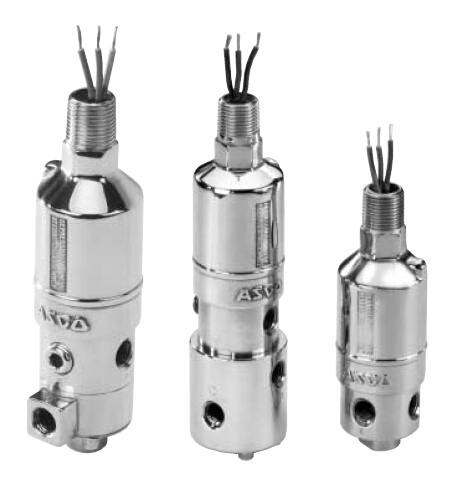

? Designed for harsh, hazardous environments, includingoffshore applications.

Standard: 316 Stainless Steel, Explosionproof and Watertight with 72" leads.

Types 1, 2, 3, 4, 4X, 6, 6P, 7, and 9, Class I, Division 1, Groups C & D.

Optional: For CENELEC approved valves with 20mm conduit connection use

prefix "EC" instead of "EF". Use prefix "ED" for 1/2" NPT conduits.

See Engineering Section under "Enclosures" for details

? Provides quick shutdown of valves and actuators.

? Low power DC for solar panels and PLC control.

? Factory-sealed leads or epoxy filled conduit connection.

? Explosionproof Types 4 and 7, Class 1, Division 1, Groups

C and D protection, or Cenelec EEx d IIB T6 with EC or

ED prefix.

? Mountable in any position

应用于严酷的危险的或环境，防爆型，快速关闭阀门与执行机构，

直流电压控制，高流量，3/2,不锈钢阀体，1/4"NPT,

电压：12，24VDC,压力范围：1-10公斤（较高值）
