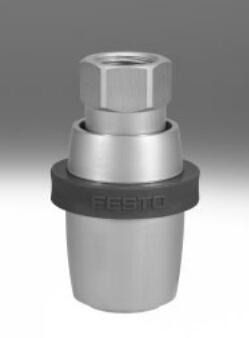

FESTO手动滑阀操作条件，费斯托手拉阀特性

FESTO手动滑阀操作条件，费斯托手拉阀特性

标准额定流量 236 l/min

额定尺寸 3.6 mm

工作压力 -0.95 ... 12 bar

环境温度 -10 ... 80 °C

外壳的材料信息 锻造铝合金

阳极氧化处理

工作介质 压缩空气符合ISO8573-1:2010 [7:4:4]

宽度尺寸 17 mm

密封原则 软性

装配位置 任意

设计结构 套筒式滑块

先导类型 直接

关于工作和先导介质的说明 可以使用经过润滑的压缩空气 (一旦使用后要求一直使用经过润滑的压缩空气)

耐腐蚀等级 CRC 2 – 中等腐蚀影响

介质温度 -10 ... 80 °C

驱动力 14 N

产品重量 8 g

凸缘螺丝的材料信息 锻造铝合金

阳极氧化处理

材料备注 符合 RoHS

密封件的材料信息 NBR

The temperature range in storage areas

must be between 10°C and 40°C all year

round. Rapid changes of temperature in

the storage area should be avoided. Heat

sources such as heater elements, heating

cables and the like should be shielded

to ensure the stored goods are not

directly subject to radiant heat.

UV radiation

No direct sunlight (skylights, vent flaps

etc.) and no high-UV artificial lighting.

Use fluorescent tubes with UV protection.

Ambient air

Air circulation and permanently feeding

(proportionally) ambient air to the storage

room is absolutely essential. You

must prevent any media that may affect

the materials, e.g. solvents and the like

arising from production processes, from

entering the storage areas. The storage

location should not contain any equipment

that generates ozone such as

indoor air ionisers or high-voltage

equipment.

The relative humidity should not exceed

75%. Condensation must be avoided in

all cases.
