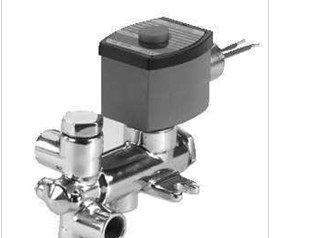

阿斯卡2位3通直动式电磁阀，美国ASCO电磁阀主要

阿斯卡2位3通直动式电磁阀，美国ASCO电磁阀主要

 上海乾拓贸易有限公司

　企业QQ：2880626087

　电话；021-69001039

　手机；17321017802（微信）

　邮箱；17321017802@163.com

　地址：上海市嘉定区江桥嘉涌路99弄6号713室

operating pressure differential (bar)

catalogue number construction 1

flow coefficient Kv

CM12-FB CM12-FB CM12-FB

SCB307B015U SCB307B045U SCB307B075U

SCB307B015G SCB307B045G SCB307B075G

- solenoids conform to international ATEX/CENELEC standards EN50014 and EN50018 ,

 EEx d , with cable entry 1/2 NPT (NF prefix, ATEX 94/9/EC,

 construction 2) or with cable entry M20 x 1,5 mm (NB prefix, construction 3)

Brass body Stainless steel body Body Brass AISI 316 SS Core tube,

core spring Stainless steel Stainless steel

SOLENOID VALVES direct operated balanced poppet construction 1/4 to 1/2

The solenoid valves satisfy all relevant EC directives

Brass and stainless steel balanced poppet pressure valves with full flow capacity (9 mm dia.)

Valves are especially suited for heavy duty industrial applications

CM12-FB CM12-FB CM12-FB

-40 to +40 -20 to +40 -40 to +40 -20 to +40

EEx d IIC T5 EEx d IIC T4 EEx d IIC T5 EEx d IIC T5

inrush holding nominal power ratings

coil type

protection or safety code

=~~ (°C)(VA) (VA) (W) (W)

CM12-FB CM12-FB

-20 to +50 -20 to +25

moulded IP65 moulded IP65

Version: - with spade plug connector (SC prefix, construction 1)

GENERAL Differential pressure 0 - 8  bar [1 bar = 100kPa]

Maximum viscosity 65 cSt (mm2/s) Response times 75 - 100 ms

(1) Catalogue number: construction 2, use the NF prefix,

exampl NFB307B15U construction 3, use the NB prefix, example NBB307B15U

temperature ranges (TS)fluids ( ✴ ✴ ✴ ✴ ✴) seal materials (✴ ✴ ✴ ✴ ✴)

air, inert gas, water, oil

(C 1 - C 2) -20°C to +85°C (C 3) -20°C to +50°C

SCB307B005G SCB307B035G SCB307B065G

ELECTRICAL CHARACTERISTICS Coil insulation class F Connector specification ISO 4400/EN 175301-803,

 form A Electrical safety IEC 335 Connection constructions 2 and 3Screw terminals Standard voltages DC

(=): 24V (Other voltages and 60 Hz on request) AC (~) : 24V - 115V - 230V / 50 Hz

(C) Construction type

16 / 23 16 / 23

 Core and plugnut Stainless steel Stainless steel Poppet stem Stainless steel

 Stainless steel Seals / poppets NBR NBR Seat Brass Stainless steel Shading coil Copper Silve

阿斯卡2位3通直动式电磁阀，美国ASCO电磁阀主要
