RXREXROTH 4/2和4/3比例方向阀

RXREXROTH 4/2和4/3比例方向阀

大小6，10

组件系列2X

较大工作压力315 bar

较大流量75 l / min

R900954084

4WRAE 10 E1-30-2X/G24K31/A1V

R901311329

4WRAE 10 E1-30-2X/G24K31/F1V

R900929318

4WRAE 10 E60-2X/G24N9K31/F1V

R900954085

4WRAE 10 EA30-2X/G24K31/A1V

R900940206

4WRAE 10 EA30-2X/G24N9K31/A1V

R900954109

4WRAE 10 EA30-2X/G24N9K31/F1V

R900954086

4WRAE 10 EA60-2X/G24K31/A1V

R900786039

4WRAE 10 EA60-2X/G24K31/F1V

R900916601

4WRAE 10 EA60-2X/G24N9K31/A1V

Recommended valve mounting screws (separate order):

4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9-flZn-240h-L

tightening torque MA = 12.5 Nm ± 10 %, material no. R913000058 or

4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9

tightening torque MA = 15.5 Nm ± 10%

rect operated proportional directional valve, without electrical position feedback, with integrated electronics (OBE)

Control of the direction and magnitude of a flow

Operation by means of proportional solenoids with central thread and detachable coil

For subplate mounting: Porting pattern according to ISO 4401

Spring-centered control spool

Product description

The 4/2 and 4/3 proportional directional valves are designed as direct operated devices in plate design. Operation by means of proportional solenoids with central thread and detachable coil. The solenoids are controlled via integrated electronics.

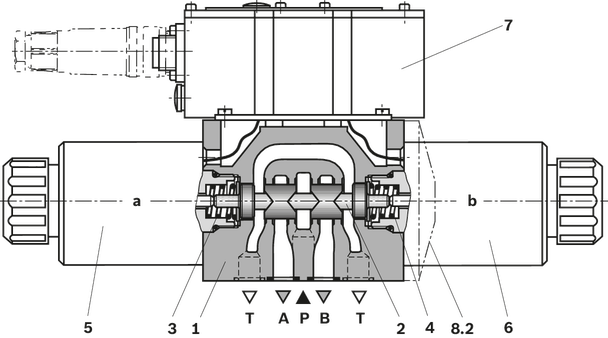

Set-up:

The valve basically consists of:

Housing (1) with connection surface ‐

Control spool (2) with compression springs (3 and 4) ‐

Solenoids (5 and 6) with central thread ‐

Integrated electronics (7) ‐

Function:

With de-energized solenoids (5 and 6), central position of the control spool (2) due to compression springs (3 and 4) ‐

Direct actuation of the control spool (2) by energization of one proportional solenoid, e. g. energization of solenoid "b" (6) ‐

Control spool (2) is moved to the left in proportion to the electrical input signal ?

Connection from P to A and B to T via orifice-type cross-sections with progressive flow characteristics ?

Switching off of the solenoid (6) ‐

Control spool (2) is returned to the central position by the compression spring (3)
