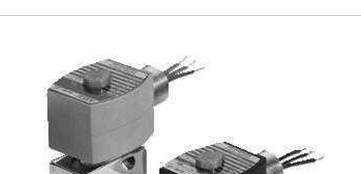

ASCO美国3通高流量直动式电磁阀主要参数

ASCO美国3通高流量直动式电磁阀主要参数

Designed for high flow piloting with no minimum

operating pressure required; e.g. power plants,

refineries, chemical processing

Balanced Poppet construction for high flow at

minimum power levels

 PTFE rider rings and graphite-filled seals reduce

friction and eliminate sticking to provide

专为高流量驾驶没有较限度

所需的操作压力;例如发电厂，

炼油厂，化学加工

平衡提升机建设高流量在

较功率水平

 聚四氟乙烯车手环和石墨填充密封减少

摩擦和消除粘附提供

的使用寿命

316不锈钢结构的高度

腐蚀性的气氛

 可用于手动重置

见特别服务科

对于黄铜阀门：标准螺线管外壳是1,2,3,4S，4X型。

316不锈钢阀门：标准电磁阀外壳是防爆的exceptional service life

316 Stainless Steel construction for highly

corrosive atmospheres

 Available with manual reset

See Special Service Section

For Brass Valves: Standard Solenoid enclosure is Types, 1, 2, 3, 3S, 4, and 4X.

For 316 Stainless Steel valves: Standard Solenoid enclosure is Explosionproof

and Watertight Types 3, 3S, 4, 4X, 6, and 6P.

Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9.

(To order, add prefix “EF” or, for Explosionproof Stainless Steel trim and hub

on Brass-Bodied valves, add “EV” to catalog number.)

See Optional Features Section for other available options.

CSA certified. UL listed General Purpose Valves.

Meets applicable CE directives.和水密类型3，3S，4，4X，6和6P。

可选：防爆和防水，类型3，3S，4，4X，6，6P，7和9。

（要订购，加上前缀“EF”或防爆不锈钢装饰和轮毂

在黄铜阀门上，将“EV”添加到目录号中。）

信因子下<4x10-7。

•符合IEC 61508-2表A1的SFF（安全失效分数）≥0.99。

Refer to Engineering Section for details.

PFD (Probability of Failure on Demand) <4x10-7 at a confidence factor of 95%.

• SFF (Safe Failure Fraction) according to IEC 61508-2 Table A1 is ≥ 0.99.

• Only constructions without manual operators apply to the above criteria.
