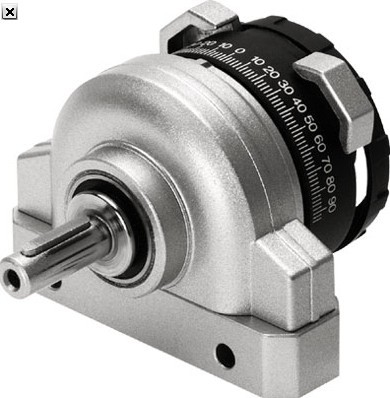

费斯托FESTO摆动驱动器英文数据资料DFPD-40-RP-90-RD-F0507

费斯托FESTO摆动驱动器英文数据资料DFPD-40-RP-90-RD-F0507

企业QQ:2880626084

手机；15308039094（微信）

电话：028-84634436-8005

邮箱:15308039094@163.com

联系人;冯娇

网址：http://www.shan-rong.net/

主要特性：

Size of valve actuator40 Nm

Flange hole patternF0507

End-position adjusting range at 0°-5 - 5 deg

End-position adjusting range at 90°-5 - 5 deg

Shaft connection depth16.5 mm

Product typeDFPD

Connection to process valve to standardISO 5211

CushioningNo cushioning

Mounting positionany

Mode of operationDouble-acting

DesignRack and pinion

Position sensingOptical

Operating pressure2...5

Nominal operating pressure0.0 - Infinity 巴

ATEX category gasII 2G

Type of ignition protection for gasc T4 X

ATEX category dustII 2D

Type of ignition protection for dustc 105°C X

Explosion ambient temperature-20°C <= Ta <= +80°C

Ambient temperature-20 ... 80°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on the operating/pilot mediumDew point at least 10°C below the ambient temperature and temperature of medium

Lubricated operation possible (in which case lubricated operation will always be required)

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

To EU Machinery Directive

Torque at nominal operating pressure and 0° swivel angle0.0 - Infinity Nm

Torque at nominal operating pressure and 90° swivel angle0.0 - Infinity Nm

Note about the torqueThe operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to

Product weight1,882 克

Shaft connectionV14

Pneumatic connectionG1/8

Housing materialRoHS-compliant

Seals materialNBR

Material of springSpring steel

Housing materialWrought aluminium alloy

Anodised

Piston rod materialDie-cast aluminium
