优质IFM易福门OID250激光传感器质保期为一年

优质IFM易福门OID250激光传感器质保期为一年

技术参数：

工作电压 [V] 10...30 DC; (符合cULus - Class 2标准)

电气设计 PNP

数字输出数量 2

输出功能 常开/常闭; (NC+NO)

环境温度 [°C] -25...60

注意环境温度

当温度ta < -10 °C时必须预热，激光关闭

电流损耗 [mA] 75; (24 V)

防护等级 III

反相保护 是

检测范围滞后 [%] < 4

注意监控范围滞后

外壳防护等级 IP 65; IP 67

外部光线抵抗力较大值 [klx] 10; (物体上)

每个输出较大电流负载 [mA] 100

开关频率DC [Hz] 11

短路保护 是

短路保护类型 脉冲

黑色

背景消隐可用 是

光线种类 红光

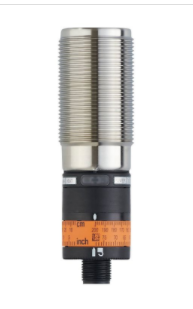

实物图：

工作原理：

激光传感器工作时，先由激光发射二极管对准目标发射激光脉冲。经

部具有放大功能的光学传感器，因此它能检测极其微弱的光信号，并

将其转化为相应的电信号。 常见的是激光测距传感器，它通过记录并

目标反射后激光向各方向散射。部分散射光返回到传感器接收器，被

光学系统接收后成像到雪崩光电二极管上。雪崩光电二极管是一种内

处理从光脉冲发出到返回被接收所经历的时间，即可测定目标距离。

激光传感器必须极其地测定传输时间，因为光速太快。

型号：

EVW124 VDOGH050SCS0002T05STGH050SCS

EVW125 VDOGH050SCS0003T05STGH050SCS

EVW126 VDOGH050SCS0005T05STGH050SCS

EVW127 VDOGH050SCS0010T05STGH050SCS

EVW128 ADOGH040SCS0002T04

EVW138 VDOGH040SCS03,5T04STGH040SCS

EVW139 VDOAH043SCS00,6T04STGH040SCS

EVW140 VDOAH043SCS01,5T04STGH040SCS

EVW141 VDOAH043SCS02,5T04STGH040SCS

EVW142 VDOAH043SCS03,5T04STGH040SCS

EVW143 VDOAH043SCS0004T04STGH040SCS

EVW144 VDOGH040SCS00,6T04STGH040SCS

EVW145 VDOGH040SCS01,5T04STGH040SCS

EVW162 VDOAH040SCS00,3T04STGH040SCS

EVW163 VDOGH040SCS00,3T04STGH040SCS

EVW164 YDOGH040SCS0001T04STGH040SCS

EVW165 VDOGH040SCS0015T04STGH040SCS

EVW166 ADOAH040SCS0030T04

EVW167 ADOGH046SCS0002T04

EVW168 ADOGH046SCS0005T04

EVW169 ADOGH046SCS0010T04

EVW170 VDOGH034SCS00,3T03STAF030SCS

EVW146 VDOGH040SCS00,3T04STAH040SCS

EVW147 VDOGH040SCS00,6T04STGH040SCS

EVW148 VDOGH040SCS01,5T04STGH040SCS

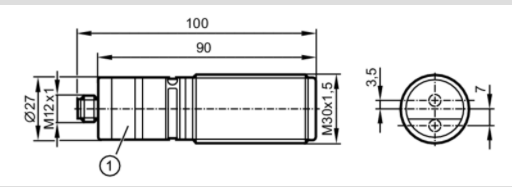

尺寸图：

EVW149 VDOGH040SCS02,5T04STGH040SCS

EVW150 VDOGH040SCS03,5T04STGH040SCS

EVW151 VDOGH040SCS0004T04STGH040SCS

EVW152 VDOAH043SCS00,6T04STGH040SCS

EVW129 ADOGH040SCS0005T04

EVW130 ADOGH040SCS0010T04

EVW131 ADOAH043SCS0002T04

EVW132 ADOAH043SCS0005T04

EVW133 ADOAH043SCS0010T04

EVW134 VDOGF030SCS00,3T03STGF030SCS

EVW135 VDOGH040SCS0008T04STGH040SCS

EVW136 VDOAH043SCS01,5T04STGH040SCS

EVW137 VDOGH040SCS02,5T04STGH040SCS

EVW153 VDOAH043SCS02,5T04STGH040SCS

EVW154 VDOAH043SCS03,5T04STGH040SCS

EVW155 VDOAH043SCS0004T04STGH040SCS

EVW156 VDOAH043SCS0008T04STGH040SCS

EVW157 VDOGH040SCS0001T04STGH040SCS

EVW158 VDOGH040SCS0003T04STGH040SCS

EVW159 ASTGH040SCS0005T04

EVW160 VDOAH040SCS01,5T04STGH040SCS

EVW161 VDOAH040SCS0001T04STGH040SCS

EVW171 VDOGH034SCS00,3T03STAH030SCS

EVW172 VDOGH034SCS00,3T03STGF030SCS

EVW173 VDOGH034SCS00,3T03STGH030SCS
