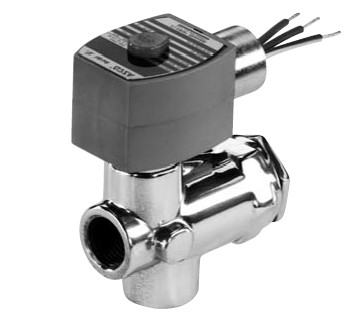

ASCO艾默生高压电磁阀,HT8223G003

ASCO艾默生高压电磁阀,HT8223G003

电话：O21-3952 9829-8O1O

传真：O21-6O83 1959

手机：189 1857 2467

QQ：288O626O81

联系人：张海情

邮箱：18918572467@163.com

ASCO的双向电磁阀有一个入口和一个出口，和用于允许流体流动和关闭。这两种类型的行动是常闭（NC）和常开（NO）。两类结构适用于双向电磁阀，它是直接作用和自控。ASCO电磁阀

高压- 1 / 4“3 / 4”

飞行员操作在一个常闭电磁阀可施工。他们是一个坚固的活塞结构承受高压力，可用交流或直流黄铜和不锈钢体。的高压水的应用（1500磅）。

内控建设用线压力辅助操作。当线圈断电时（在一个常闭阀），飞行员口闭合，线压力通过节流孔的排气作用于活塞或隔膜的顶部，关闭阀门。

ASCO艾默生高压电磁阀,HT8223G003

ASCO's 2-Way solenoid valves have one inlet and one outlet, and are used to permit and shut off fluid flow. The two types of operations are Normally Closed (NC) and Normally Open (NO). Two types of constructions apply to 2-way solenoid valves, which are direct acting and internally piloted.

High Pressure - 1/4" - 3/4"

Pilot operated solenoid valve available in a normally closed construction. They are a rugged piston construction built to withstand high pressures and are available AC or DC with brass and stainless steel bodies. Ideal for high pressure water applications (up to 1500 PSI).

Internally piloted constructions use line pressure to assist operation. When the coil is de-energized (on a Normally Closed Valve), the pilot orifice is closed and line pressure is applied to the top of the piston or diaphragm through the bleed orifice, closing the valve.

ASCO艾默生高压电磁阀,HT8223G003
