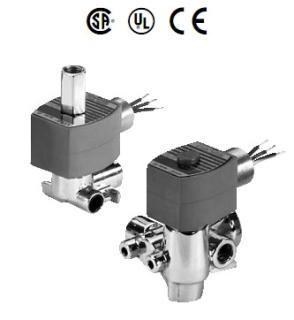

SOLENOID VALVES

pilot operated

hung diaphragm

3/8 to 1 1/2

FEATURES

• Two way shut-off valves for the control air, inert gas, water, oil and other

gases/liquids compatible with the sealing material used

• Valves do not require a minimum operating pressure

• All products are covered by Pressure Equipment Directive 97/23/EC and are

suitable for group 1 and 2 fl uids

• The solenoid valves satisfy all relevant EC directives

一般

差压见«规格»[1巴=100千帕]

较大粘度65厘沲（毫米2 /秒）

响应时间15 - 120毫秒

佛罗里达州的UID（✴）温度范围（TS）密封材料（✴）

空气，惰性气体，水，油 - 20°C至+85°C NBR（丁腈）

电气特性

线圈绝缘等级F级或H

连接器铲形插头（电缆直径6-10毫米）

连接器specifi阳离子ISO 4400/ EN 175301-803，A型

电气安全IEC335

电器外壳防护等级IP65模制（EN60529）

标准电压DC（=）：24V - 48V

（其他电压和60赫兹的要求）AC（〜）：24V - 48V - 115V - 230V/50赫兹

INSTALLATION

• The solenoid valves can be mounted in any position without affecting operation,

unless indicated otherwise in the specifi cations table.

• Stainless steel valves are standard supply with mounting brackets

• Pipe connection identifi ers are: G = G (ISO 228/1), E = Rp (ISO 7/1) or B = NPT (ANSI 1.20.3)

• Installation/maintenance instructions are included with each valve
