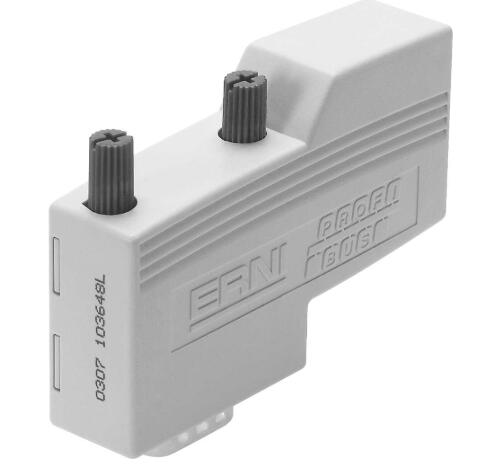

费斯托插头 FBS-SUB详细介绍

费斯托插头 FBS-SUB详细介绍

General technical data

Type FBS-SUB-9-GS-DP-B FBS-SUB-9-GS-IB-B FBS-SUB-9-GS-2X4POL-B FBS-SUB-9-GS-1X9POL-B

Electrical connection Plug, 9-pin, Sub-D

Control elements DIL switches – – –

Note for fieldbus interface – – BUS In - BUS Out looped

through

–

Additional functions Switching off of outgoing

fieldbus segment

Integrated RBST bridge – –

Permissible cable diameter [mm] 5 … 10

Degree of protection to EN 60529 IP65, IP67 (assembled)

Height/length/width [mm] 62/61/20

General technical data

Type FBS-SUB-9-WS-…

Electrical connection Plug, 9-pin, Sub-D

Permissible cable diameter [mm] 4.5 … 8

Degree of protection to EN 60529 IP40

Materials

Type FBS-SUB-9-GS-… FBS-SUB-9-GS-1X9POL-B FBS-SUB-9-WS-…

Housing PA reinforced PA reinforced Thermoplastic

Seals NBR NBR –

Screws Steel Steel –

Union nut Brass Brass –

Note on materials RoHS-compliant – –

Operating and environmental conditions

Type FBS-SUB-9-GS-… FBS-SUB-9-GS-1X9POL-B FBS-SUB-9-WS-…

Ambient temperature [°C] 0 … +50 0 … +50 –20 … +70

Storage temperature [°C] –20 … +70 –20 … +70 –

Relative air humidity [%] 95, non-condensing 95, non-condensing –

CE marking

(see declaration of conformity)

– To EU EMC Directive1) –

– To EU Low Voltage Directive –
