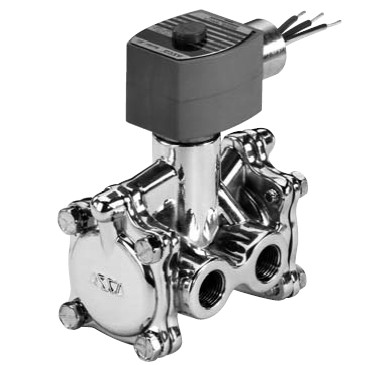

EF8316G004MB,ASCO三通防爆电磁阀

EF8316G004MB,ASCO三通防爆电磁阀

技术信息

交流/直流交流

驱动方法 电磁线圈

阀体材质 黄铜

线圈类型 FT

线圈型号 238614-005-d

Cv/Kv（压力端口）4Cv~3.46Kv

入口管尺寸（NPT）1/2

较大环境温度 125°F~52°C

较大流体温度 180°F~82°C

小环境温度 -4°F~20°C

小流体温度 -4°F~20°C

孔尺寸 5/8

额定功率为 60Hz 10.1W

小工作压力（空气）15psi~1.03bar

较大工作压力（空气）150psi~10.3bar

三通电磁阀

这些阀门有三个管接头和两个孔。当一个孔是打开的，另一个是关闭的，反之亦然。它们通常被用来交替施加压力，从一个阀致动器或一个单一的作用缸的排气压力。这些阀门通常是关闭的，通常是开的或是通用的。

EF8316G004MB,ASCO三通防爆电磁阀

Technical Information

AC/DC  AC

Actuation Method  Solenoid

Body Material  Brass

Coil Class  FT

Coil Number  238614-005-D

Cv/Kv (Pressure Port)  4Cv~3.46Kv

Inlet Pipe Size (NPT)  1/2

Max Ambient Temperature  125°F~52 C

Max Fluid Temperature  180°F~82 C

Min Ambient Temperature  -4°F~20 C

Min Fluid Temperature  -4°F~20 C

Orifice Size  5/8 in

Watt Rating 60 Hz  10.10 W

Min Operating Pressure (Air) 15psi~1.03bar

Max Operating Pressure (Air) 150psi~10.3bar

3-Way Solenoid Valves

These valves have three pipe connections and two orifices. When one orifice is open, the other is closed and vice versa. They are commonly used to alternately apply pressure to an exhaust pressure from a valve actuator or a single acting cylinder. These valves can be normally closed, normally open or universal.
