426873,BURKERT电导传感器

426873,BURKERT电导传感器

电导率传感器是一个集成导电电极的紧凑型探头。

具有不同的细胞常数的四个导电探针，并提供一个大的测量范围。自动温度补偿的设计集成在传感器外壳。

传感器直接传输模拟信号和配备标准EN 175301-803插头连接器。

传感器必须通过屏蔽电缆连接到Bü吕克特电导率变送器8225型面板或墙式安装或多传感器/控制器8619型（10米较大电缆长度）。

电导率传感器可以安装在一个管道采用插入装配式s020在不同材料是可用的。在更长的版本中，它也可以安装在坦克或容器中，通过使用工业浸泡配件。

电话：O21-3952 9829-8O1O

传真：O21-3994 7616

手机：189 1857 2467

QQ：288O626O81

联系人：张海情

邮箱：18918572467@163.com

426873,BURKERT电导传感器

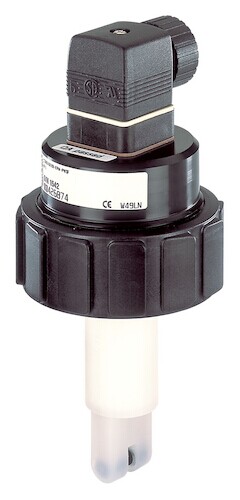

The conductivity sensor is a compact probe with integrated conductivity electrodes.

Four conductivity probes having different cell constants are available and offer a large measurement range. The Pt1000 for automatic temperature compensation is integrated in the sensor housing.

The sensor transmits directly an analog signal and is fitted with a standard EN 175301-803 plug connector.

The sensor has to be connected to the Bürkert conductivity transmitter Type 8225 for panel or wall mounting or to the multiCELL transmitter/controller Type 8619 via a shielded cable(maximal cable length of 10 m).

The conductivity sensor can be installed into a pipe by using INSERTION fitting Type S020 which is available in different materials. In its longer version it can also be installed in tanks or containers by using an industrial immersion fitting.

426873,BURKERT电导传感器
